MODEL: RGV

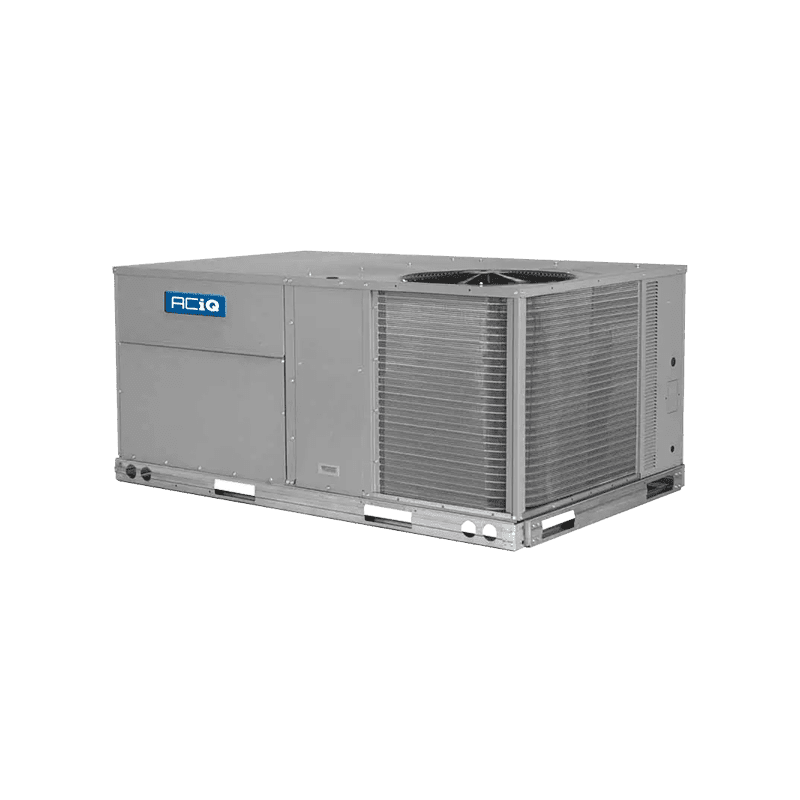

RGV - Light Commercial Gas/Electric Packaged Unit

The ACiQ RGV light commercial packaged unit series is one of the best-performing commercial units in the market today. These units offer a wide range in tonnage, BTU, electric configuration, and much more to ensure there is one for any job. All RGV units are field-convertible to horizontal airflow, making it easy to adjust to unexpected job site complications. With the new vane-axial fan and direct drive ECM motor, there is no longer a need to adjust belts or pulleys as in past designs, reducing maintenance and installation time. The unit control board puts all connections and troubleshooting points in one convenient place. All of these features make the RGV series the right call for any job.

01

FEATURES
  • 3 to 10 ton
  • 90,000 to 180,000 BTU
  • 208/230V Single Phase, 208/230V 3 Phase, and 460V 3 Phase configurations available
  • 13.4 SEER2, 11 – 11.2 EER2
  • Direct drive ECM blower motor with X-Vane™ fan
  • Two stage gas valve – Provides a ‘middle’ setting for heat output
  • Built-in unit control board for convenient quick diagnostic and connection review, with low voltage connections made to the same board for easy access
  • Vane-axial design – 75% fewer moving parts, uses up to 40% less energy, and has no fan belts, blower bearings, or shaft
Where to Buy

02

VIEW SPECS
  • Tonnage: 3 – 10 Tons
  • Heating BTUs: 90,000 – 180,000
  • Electrical Info: 208/230v 1 Phase, 208/230v 3 Phase, 460v 3 Phase
  • SEER2 (SEER): 13.4 SEER2 (14 SEER)
  • EER2 (EER): 11 – 11.2 EER2
  • Furnace Efficiency / AFUE: 80 – 82%
  • Drive Type: Direct
  • Burner Stages: Two Stage
  • Decibel Level: 79 Decibels
  • Blower Motor: Direct Drive ECM blower motor with X-Vane™ fan
  • Warranty: 10 Years Heat Exchanger, 5 Years Compressor, and 1 Year Parts Limited Warranty with Online Registration
