MODEL: ACIQ-24TD-HP / ACIQ-24TD-AH
HE Top Discharge Heat Pump Systems
Bundle_24TD_TopD_Unitary
Bundle_24TD_TopD_Unitary
Where to Buy
MODEL: ACIQ-24TD-HP / ACIQ-24TD-AH

ACiQ 24K High-Efficiency Top Discharge Heat Pump System

The ACiQ 2 Ton Inverter Heat Pump Split System delivers high-performance heating and cooling with advanced inverter technology and up to 18 SEER2 efficiency. Designed for multi-positional installation and pre-charged with eco-friendly R-454B refrigerant, this system adapts to your home’s needs while helping lower energy costs—making it a smart choice for reliable, year-round comfort.

01

FEATURES
  • Complete all-electric heating and cooling system
  • Efficient cooling from 5°F to 125°F outdoor temperatures
  • Efficient heating from -5°F to 80°F outdoor temperatures
  • Multi speed constant torque blower motor
  • Multi-positional Air Handler – Can be installed in up-flow, down-flow, or horizontal left/right orientations
Where to Buy

02

VIEW SPECS
  • Tonnage: 2 Ton
  • CFM: 850
  • Efficiency Rating: 18 SEER
  • Cooling BTU: 24,000
  • Heating BTU: 24,000
  • Communicating Capability: 24v Thermostat

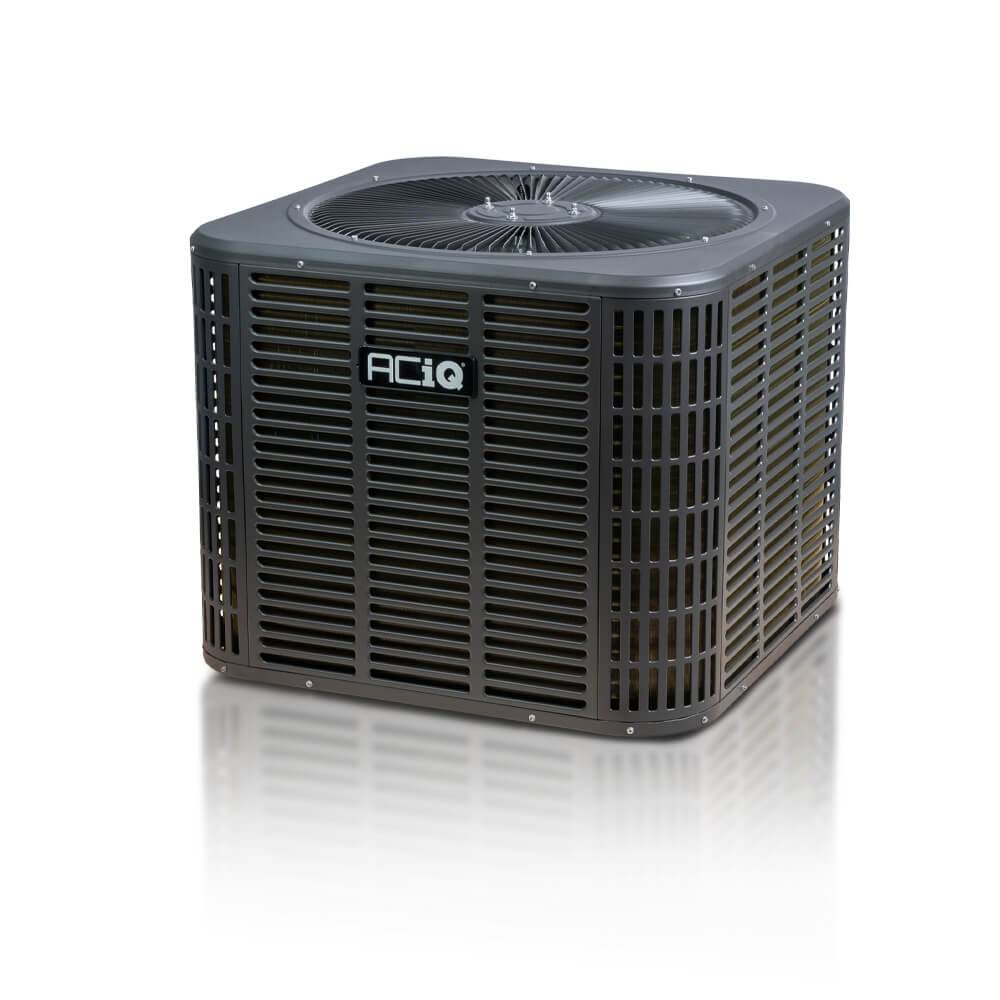

  • Outdoor Unit (WxDxH): 29-1/8 x 29-1/8 x 24-15/16

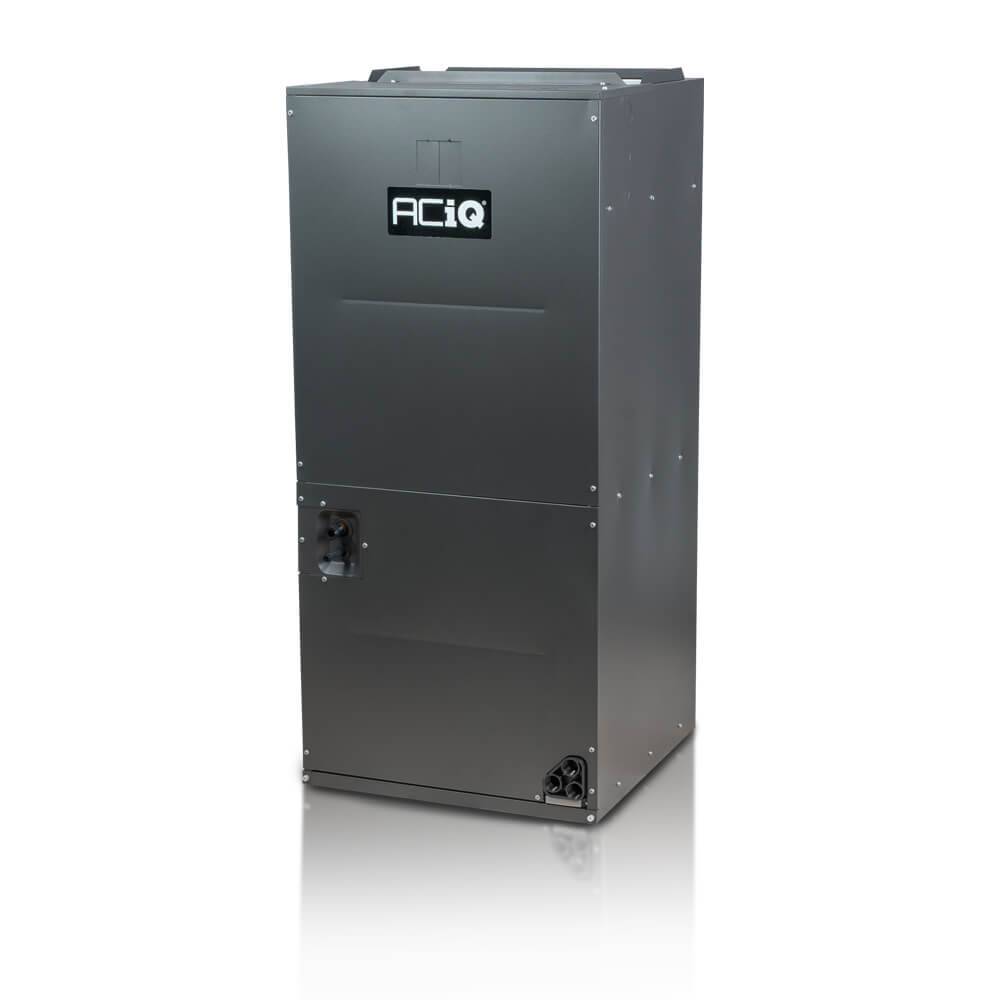

  • Indoor Unit Dimensions (WxDxH):21.50 x 14.49 x 49.72
  • Outdoor Operating Temperature Range: -22~122
  • Airflow Direction: Multi-positional; Upflow, downflow, horizontal left or right
  • Electrical: 208-230v / 1Ph / 60Hz
  • Sound Level: 67 dB(A)
  • Refrigerant: R454B
  • Warranty: 12-Year Compressor & 7-Year Parts – with online registration
