ACIQ 4 Ton 16 SEER2 High Efficiency Central Heat Pump System | Inverter - R-454B

• 12,000 BTU to 24,000 BTU variable output based on demand
• Inverter heat pump system for use in applications with ductwork

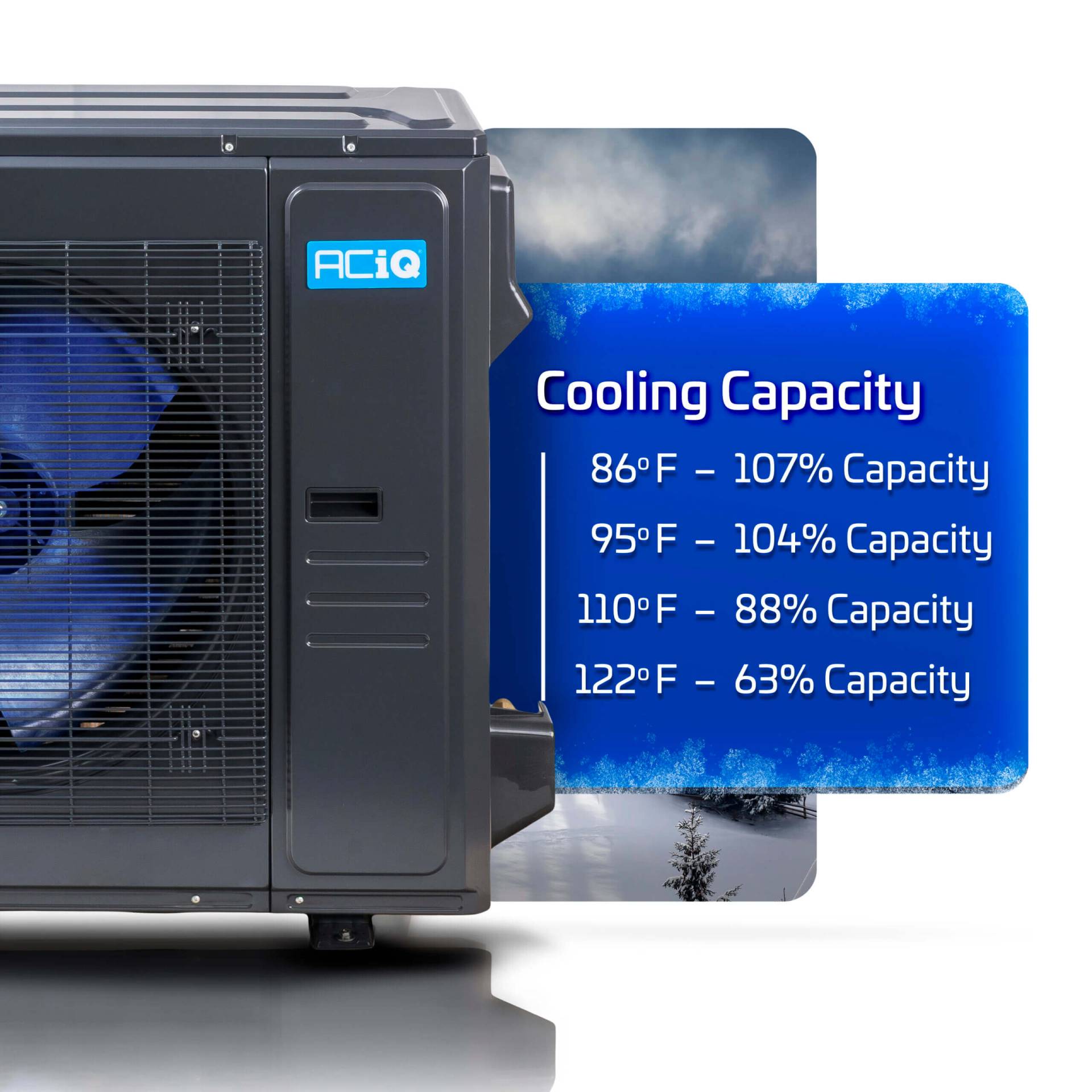

• Efficient cooling from 5°F to 122°F outdoor temperatures

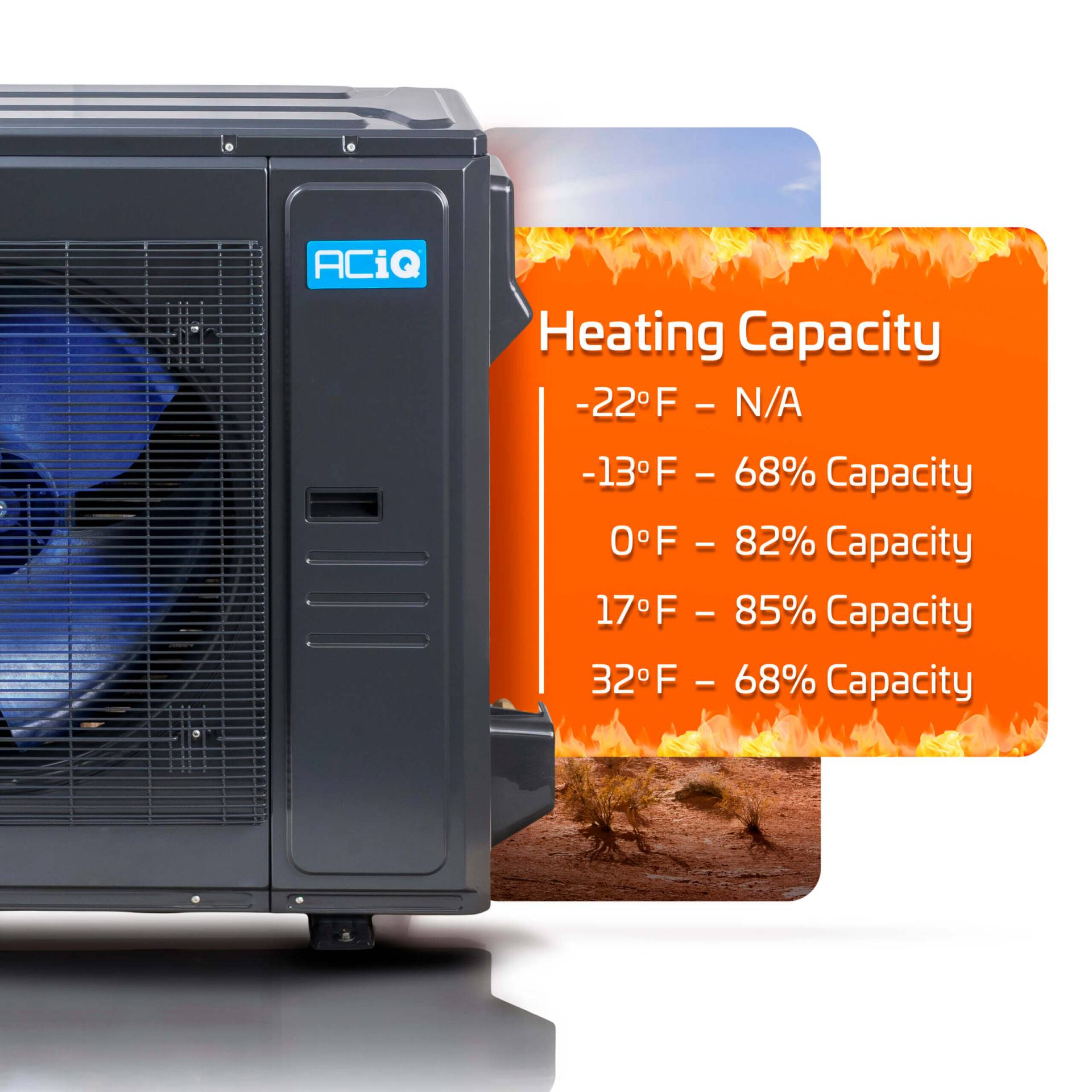

• Efficient heating from 5°F to 75°F outdoor temperatures
• Durable Gold Fin condenser coil coating
• Quiet operation at even the highest workloads
• Manufactured & Mobile Home approved

How is it different from a traditional heat pump?

• Traditional heat pumps rely on expensive heat strips below 30°F
• High Efficiency Heat Pump Systems save up to 75% in temps below 30°F
• Variable BTU Inverter ramps up and down to match demand
• Smart system with soft startups to maximize efficiency
• OK to size for heat – will not short cycle during cooling
• Rated for efficient heating down to 5°F outdoor temperatures

• Tonnage: 4 Ton
• CFM (Turbo/Hi/Mi/Lo): 1600.99 / 1471.50 / 1283.15 / 1094.80
• Efficiency Rating: 16 SEER
• Cooling Capacity: 16600~49900 BTU
• Heating Capability: 15300~49500 BTU
• Airflow Direction: Multi-positional; Upflow, downflow, horizontal left or right
• Communicating Capacity: 24v Thermostat
• Outdoor Unit (WxDxH): 38.58 x 16.34 x 38.39
• Indoor Unit (WxDxH): 21.02 x 24.49 x 52.99
• Outdoor Operating Temperature Range: -13~122
• Electrical: 208-230v / 1Ph / 60Hz
• Sound Level: 65 dB(A)
• Refrigerant: R454B
• Warranty: 12-Year Compressor & 7-Year Parts – with online registration

• Submittal
• Heat Kit Installation Manual
• Outdoor Installation Manual
• Outdoor Service Manual
• Indoor Installation Manual
• Indoor Owner Manual
