MODEL: ACIQ-48-PAH / ACIQ-48-HPD

ACIQ 4 Ton 17.5 SEER2 High Efficiency Central Heat Pump System | Inverter | Extreme+ Series - R-454B

ACiQ's High Efficiency Heat Pump Extreme+ Heat systems are the ultimate choice with a self-adjusting, mini-split-style inverter condenser matched to a communicating air handler that attaches to your existing ductwork. It is the most efficient system and has better output in the most extreme conditions. It is Energy Star and eligible for most rebates.

01

FEATURES
  • Inverter heat pump system for use in applications with ductwork

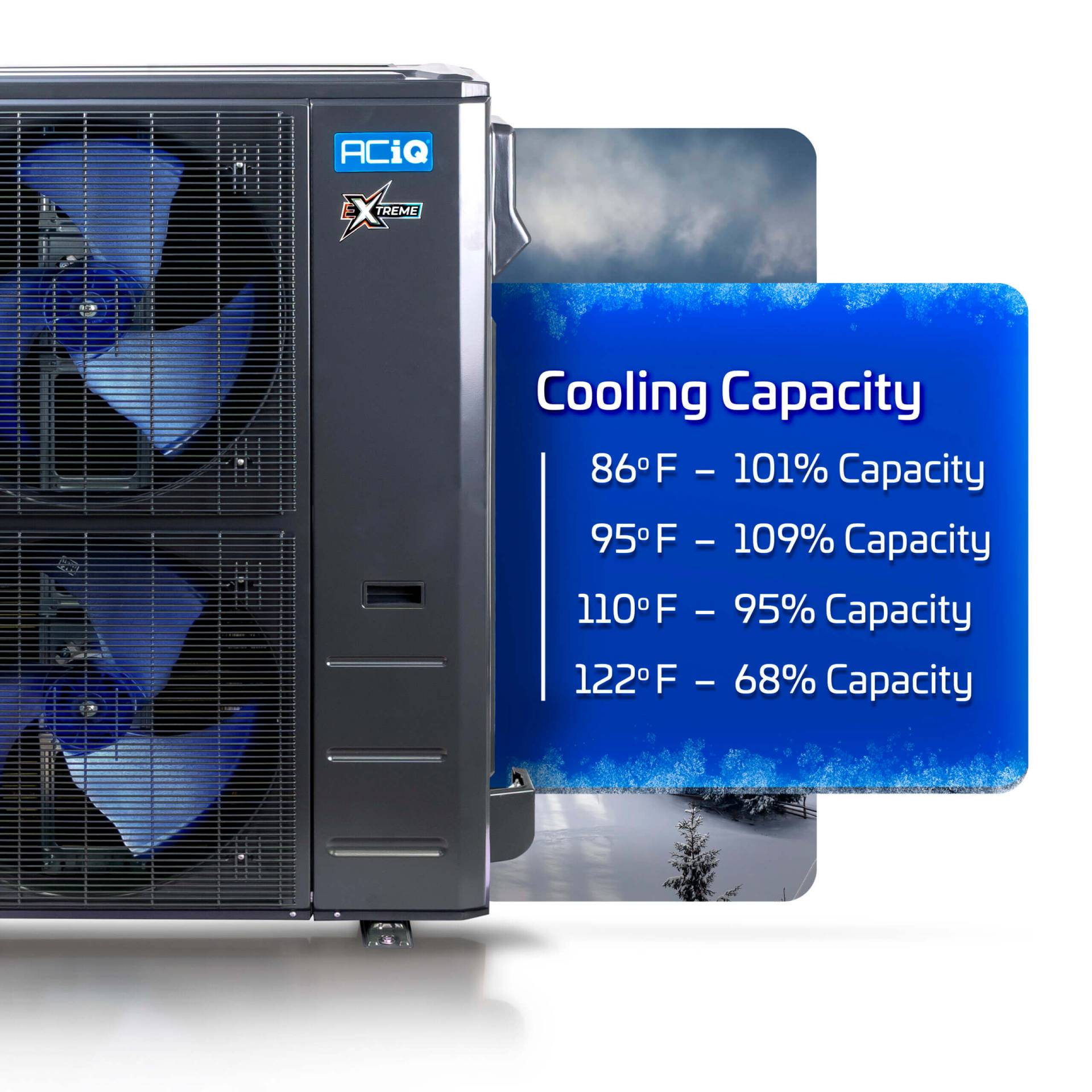

  • Efficient cooling from 5°F to 122°F outdoor temperatures

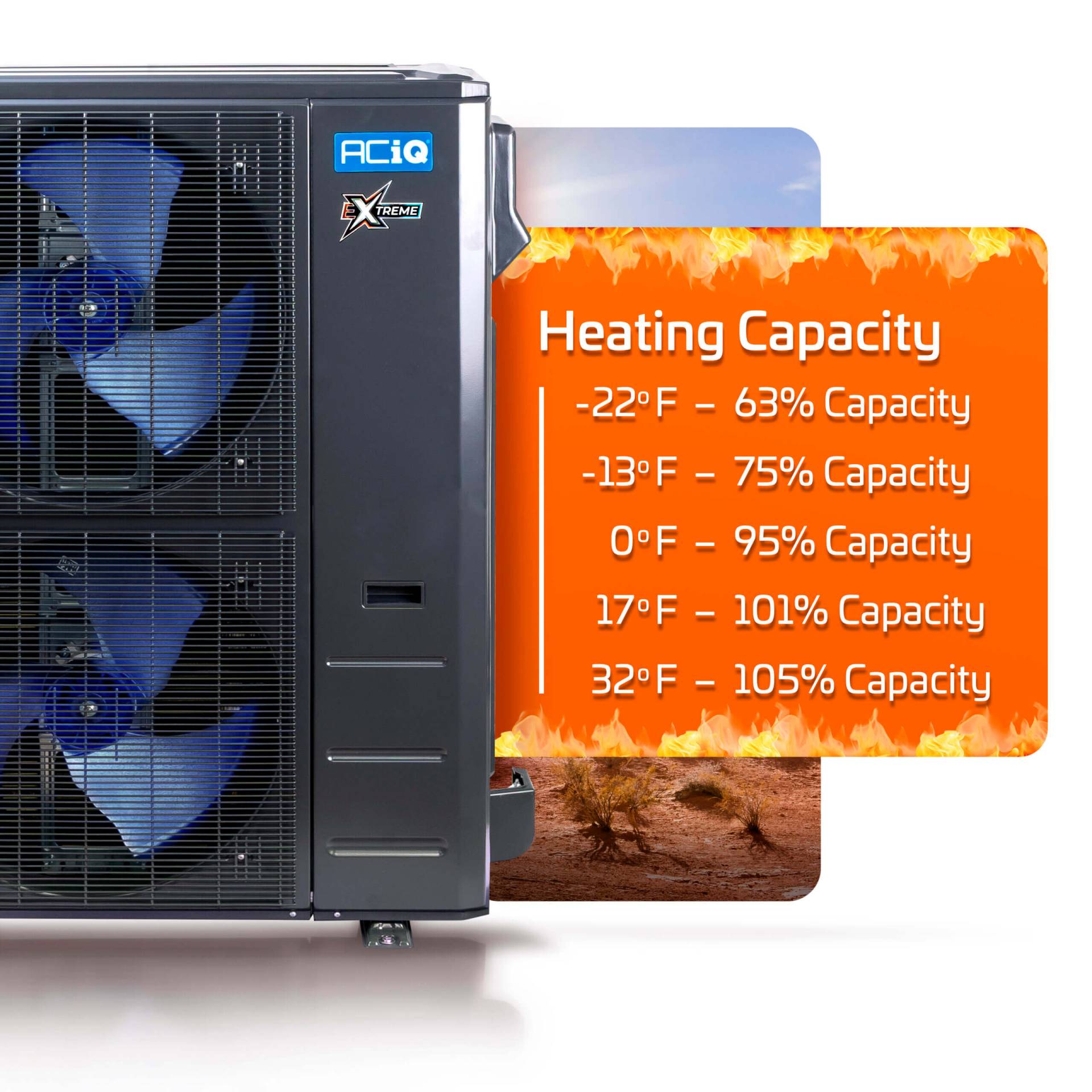

  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Durable Gold Fin condenser coil coating
  • Quiet operation at even the highest workloads
  • Manufactured & Mobile Home approved

How is it different from a traditional heat pump?

  • Traditional heat pumps rely on expensive heat strips below 30°F
  • High Efficiency Heat Pump Systems save up to 75% in temps below 30°F
  • Variable BTU Inverter ramps up and down to match demand
  • Smart system with soft startups to maximize efficiency
  • OK to size for heat – will not short cycle during cooling
  • Rated for efficient heating down to -22°F outdoor temperatures
Where to Buy

02

VIEW SPECS
  • Tonnage: 4 Ton
  • CFM (Turbo/Hi/Mi/Lo): 1601.0 / 1442.1 / 1265.5 / 1088.9
  • Efficiency Rating: 17.5 SEER
  • Cooling Range: 18000~52000 BTU
  • Heating Range: 13500~52000 BTU
  • Communicating Capability: 24v Thermostat
  • Outdoor Unit (WxDxH): 38.58 x 16.34 x 38.39
  • Indoor Unit Dimensions (WxDxH):21.50 x 21.50 x 55.94
  • Outdoor Operating Temperature Range: -22~122
  • Airflow Direction: Multi-positional; Upflow, downflow, horizontal left or right
  • Electrical: 208-230v / 1Ph / 60Hz
  • Sound Level: 65 dB(A)
  • Refrigerant: R454B
  • Warranty: 12-Year Compressor & 7-Year Parts – with online registration
