MODEL: ACIQ-30-AHD / ACIQ-30-HPD

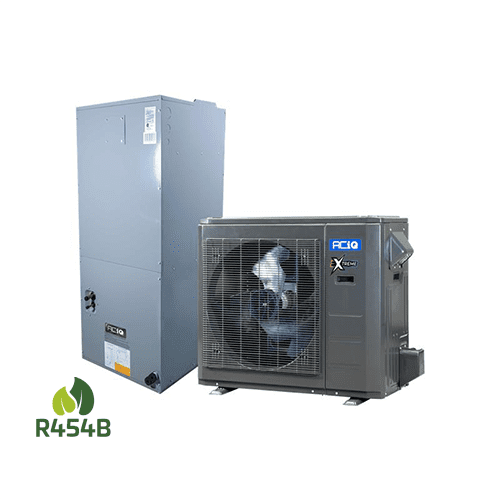

ACIQ 2.5 Ton 16.8 SEER2 High Efficiency Central Heat Pump System | Inverter | Extreme Series - R-454B

ACiQ's High Efficiency Heat Pump Extreme Heat systems give you the best of both worlds - a self-adjusting, mini-split-style inverter condenser matched to a communicating air handler that attaches to your existing ductwork.

01

FEATURES
  • Inverter heat pump system for use in applications with ductwork

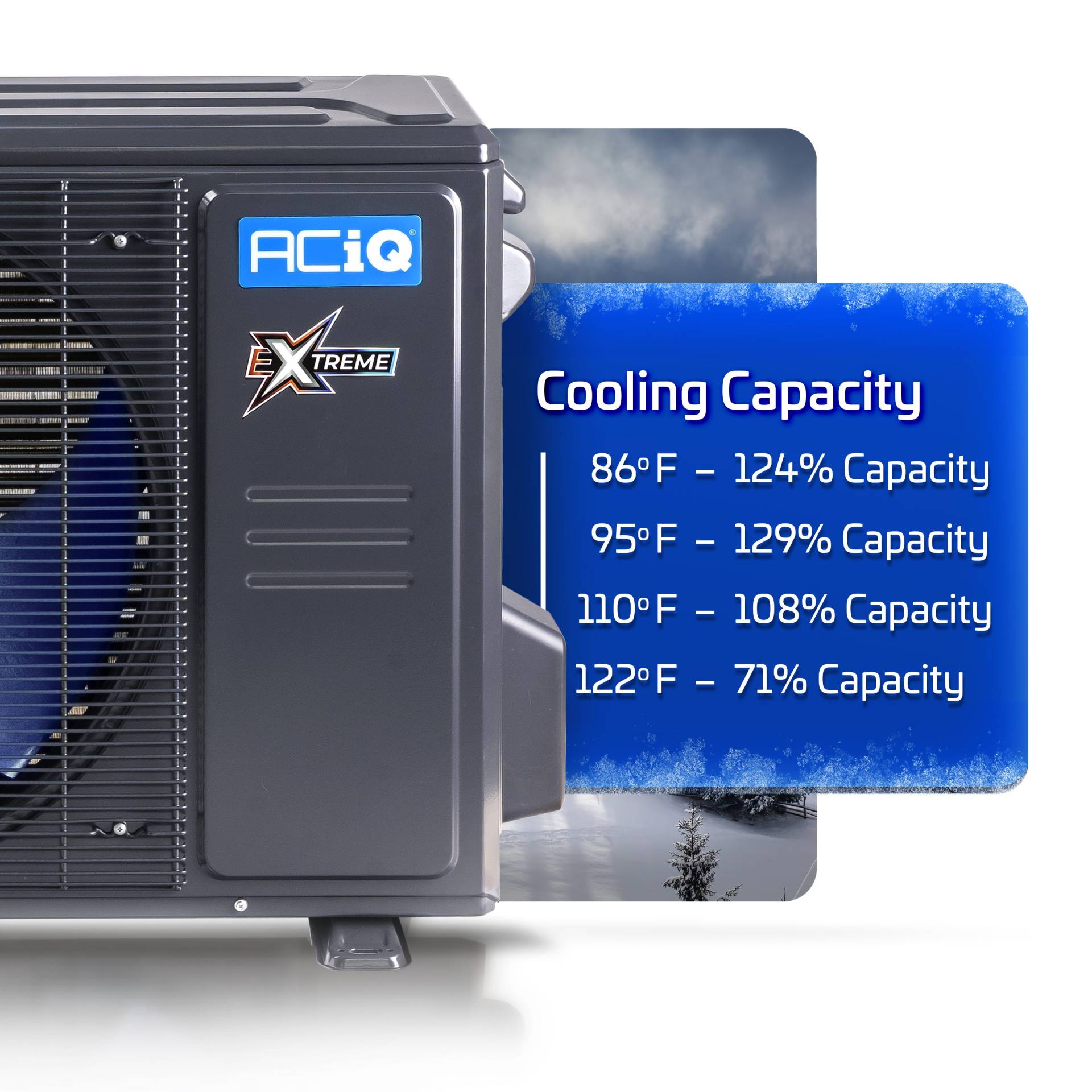

  • Efficient cooling from 5°F to 122°F outdoor temperatures

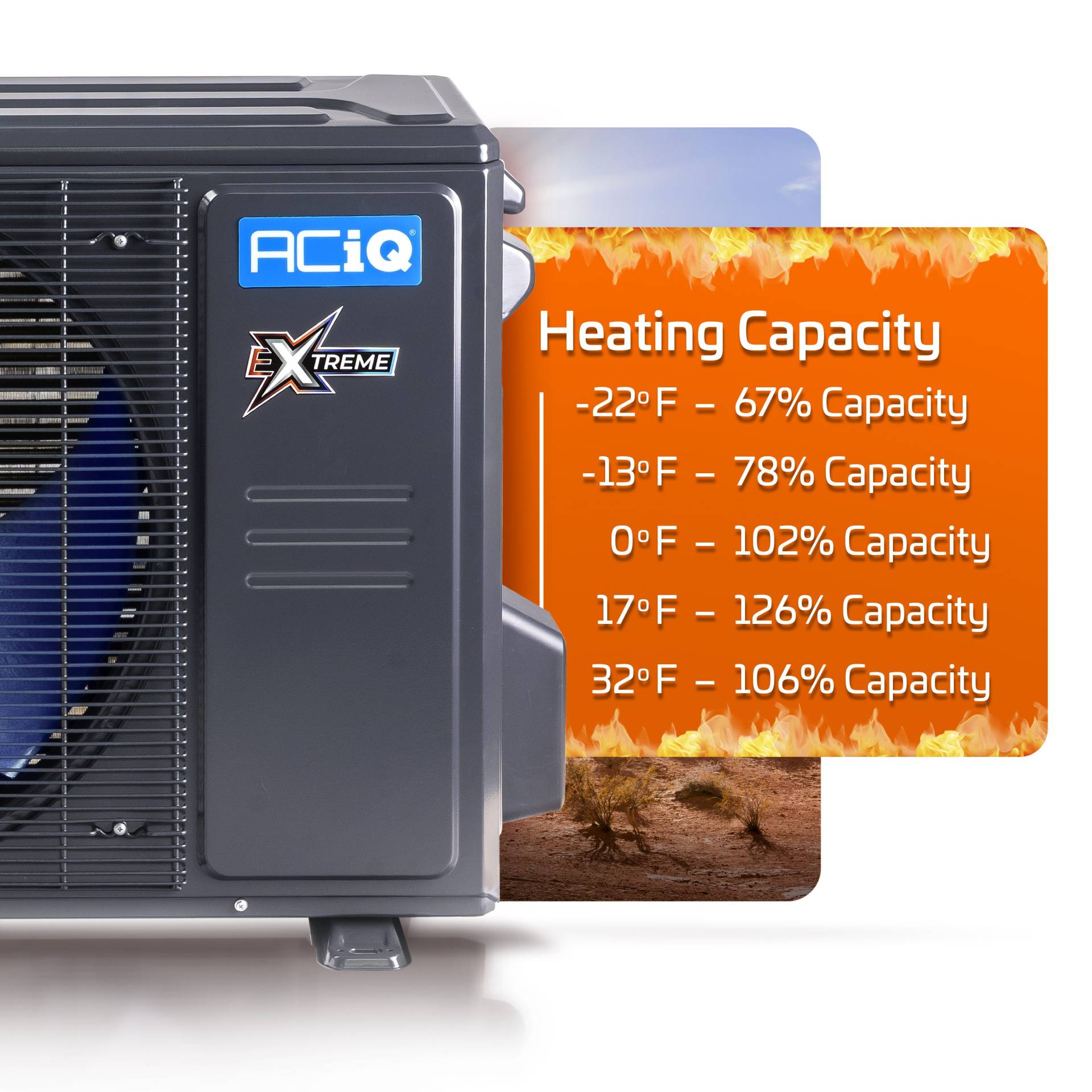

  • Efficient heating from -22°F to 75°F outdoor temperatures
  • Durable Gold Fin condenser coil coating
  • Quiet operation at even the highest workloads
  • Manufactured & Mobile Home approved

How is it different from a traditional heat pump?

  • Traditional heat pumps rely on expensive heat strips below 30°F
  • High Efficiency Heat Pump Systems save up to 75% in temps below 30°F
  • Variable BTU Inverter ramps up and down to match demand
  • Smart system with soft startups to maximize efficiency
  • OK to size for heat – will not short cycle during cooling
  • Rated for efficient heating down to -22°F outdoor temperatures
Where to Buy

02

VIEW SPECS
  • Tonnage: 2.5 Ton
  • CFM (Turbo/Hi/Mi/Lo): 988.8 / 894.7 / 806.4 / 712.2
  • Efficiency Rating: 16.8 SEER
  • Cooling Range: 12800~39000 BTU
  • Heating Range: 10300~38500 BTU
  • Communicating Capability: 24v Thermostat
  • Outdoor Unit (WxDxH): 37.24 x 16.14 x 31.89
  • Indoor Unit Dimensions (WxDxH): 21.02 x 21.02 x 49.02
  • Outdoor Operating Temperature Range: -22~122
  • Airflow Direction: Multi-positional; Upflow, downflow, horizontal left or right
  • Electrical: 208-230v / 1Ph / 60Hz
  • Sound Level: 60.5 dB(A)
  • Refrigerant: R454B
  • Warranty: 12-Year Compressor & 7-Year Parts – with online registration
