ACIQ-36-HP-E-32 / ACIQ-36-AH-E-32

ACiQ 3 Ton 17 SEER2 High Efficiency Essentials Heat Pump | Inverter System - R32

The ACiQ Essentials Heat Pump delivers reliable, energy-efficient comfort for year-round heating and cooling. Built with advanced inverter technology and environmentally friendly R32 refrigerant, this system provides smooth, consistent temperature control while helping reduce energy use and utility costs. Designed for dependable performance and everyday value, the Essentials series is a smart choice for homeowners looking for efficient, quiet operation and long-lasting comfort.

01

FEATURES
  • 8,500 BTU to 32,000 BTU variable output based on demand
  • Inverter heat pump system for use in applications with ductwork
  • Efficient cooling from 5°F to 125°F outdoor temperatures
  • Efficient heating from 5°F to 75°F outdoor temperatures
  • Durable Gold Fin condenser coil coating
  • Quiet operation at even the highest workloads
  • Manufactured & Mobile Home approved

How is it different from a traditional heat pump?

  • Traditional heat pumps rely on expensive heat strips below 30°F
  • High Efficiency Heat Pump Systems save up to 75% in temps below 30°F
  • Variable BTU Inverter ramps up and down to match demand
  • Smart system with soft startups to maximize efficiency
  • OK to size for heat – will not short cycle during cooling
  • Rated for efficient heating down to 5°F outdoor temperatures
Where to Buy

02

VIEW SPECS
  • Tonnage: 3 Ton
  • CFM (Hi/Mi/Lo): 1100 / 950 / 790
  • Efficiency Rating: 17 SEER
  • Cooling Capacity: 35,000 BTU
  • Heating Capability: 38,000 BTU
  • Airflow Direction: Multi-positional; Upflow, downflow, horizontal left or right
  • Communicating Capacity: 24v Thermostat

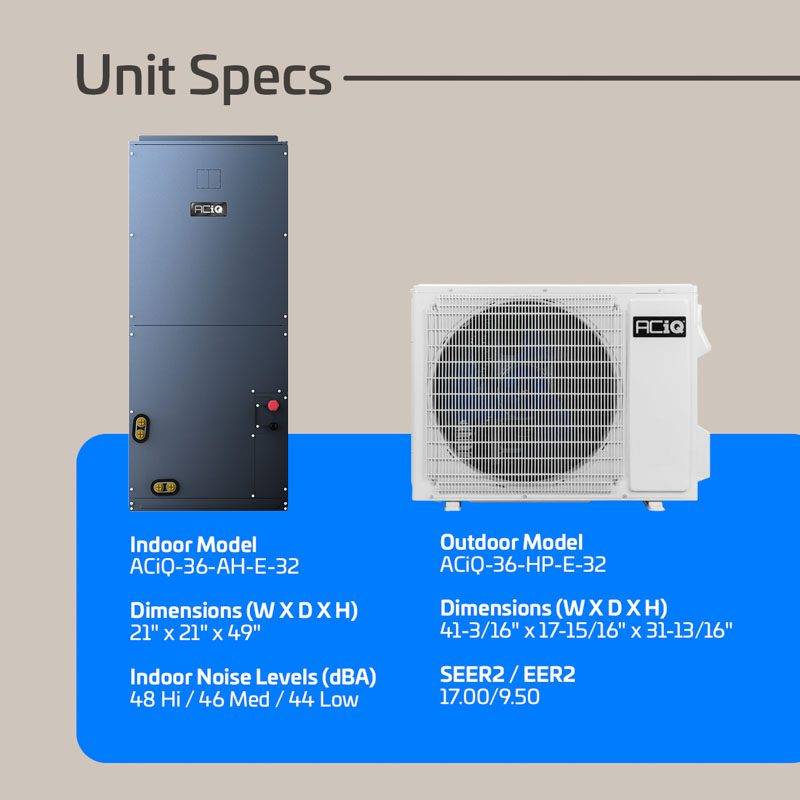

  • Outdoor Unit (WxDxH): 41-3/16″ x 17-15/16″ x 31-13/16″
  • Indoor Unit (WxDxH): 21″ x 21″ x 49″
  • Outdoor Operating Temperature Range: 61 – 90
  • Electrical: 208-230v / 1Ph / 60Hz
  • Sound Level: 44 dB(A)
  • Refrigerant: R32
  • Warranty: 12-Year Compressor & 7-Year Parts – with online registration
