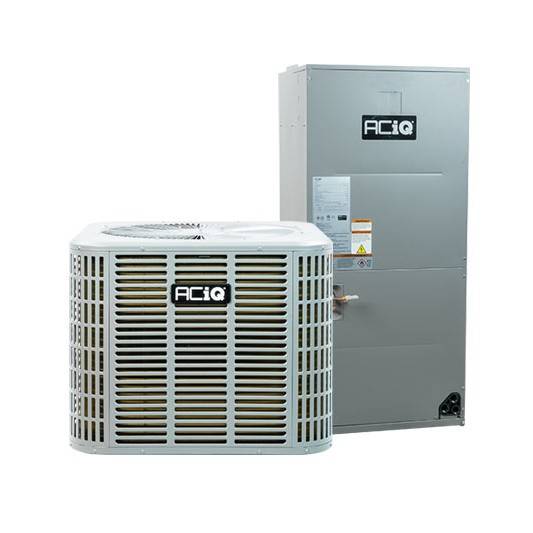

Top Discharge Inverter R32 Bundle
ACiQ Top Discharge INV HP R32 3/4
Front
Where to Buy
High Efficiency Top Discharge Inverter Heat Pump Split System

Pro Series Single Stage Heat Pump R32

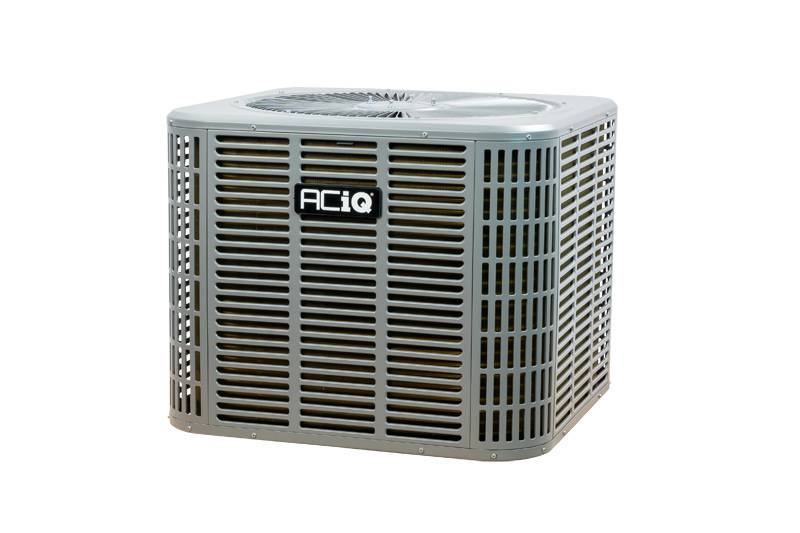

The ACiQ Top Discharge Inverter Heat Pump R32 delivers reliable year-round heating and cooling with dependable single-stage performance. Designed for long-lasting comfort and energy savings, these central heat pump condensers use eco-friendly R-32 refrigerant and provide an efficient solution for a wide range of residential applications.

01

FEATURES
  • Complete all-electric heating and cooling system
  • Efficient cooling from 5°F to 125°F outdoor temperatures
  • Efficient heating from -4°F to 80°F outdoor temperatures
  • Multi speed constant torque blower motor

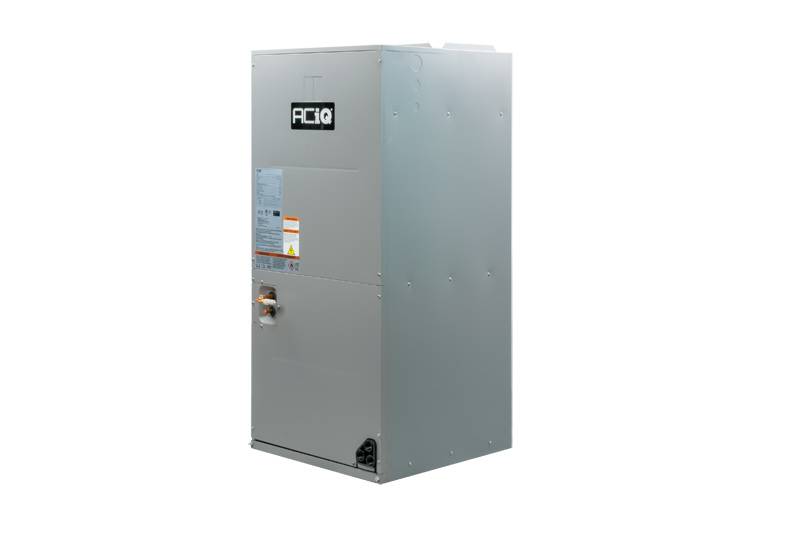

  • Multi-positional Air Handler – Can be installed in up-flow, down-flow, or horizontal left/right orientations
Where to Buy

02

VIEW SPECS
  • SKUs
    • ACiQ-24TD-HP32 / ACiQ-24TD-AH32
    • ACiQ-36TD-HP32 / ACiQ-36TD-AH32
    • ACiQ-48TD-HP32 / ACiQ-48TD-AH32
    • ACiQ-60TD-HP32 / ACiQ-60TD-AH32
  • Available Sizes: 2 Ton, 3 Ton, 4 Ton, and 5 Ton
  • CFM: 990 – 1560
  • Efficiency Rating: Up to 15.2 SEER
  • Cooling BTU: 24,000 – 54,000
  • Heating BTU: 24,000 – 54,000
  • Communicating Capability: 24v Thermostat
  • Outdoor Operating Temperature Range: -4~125
  • Airflow Direction: Multi-positional; Upflow, downflow, horizontal left or right
  • Electrical: 208-230v / 1Ph / 60Hz
  • Minimum Sound Level: 49 dB(A)
  • Refrigerant: R32
  • Warranty: 12-Year Compressor & 7-Year Parts – with online registration
